IEC60068-2-75

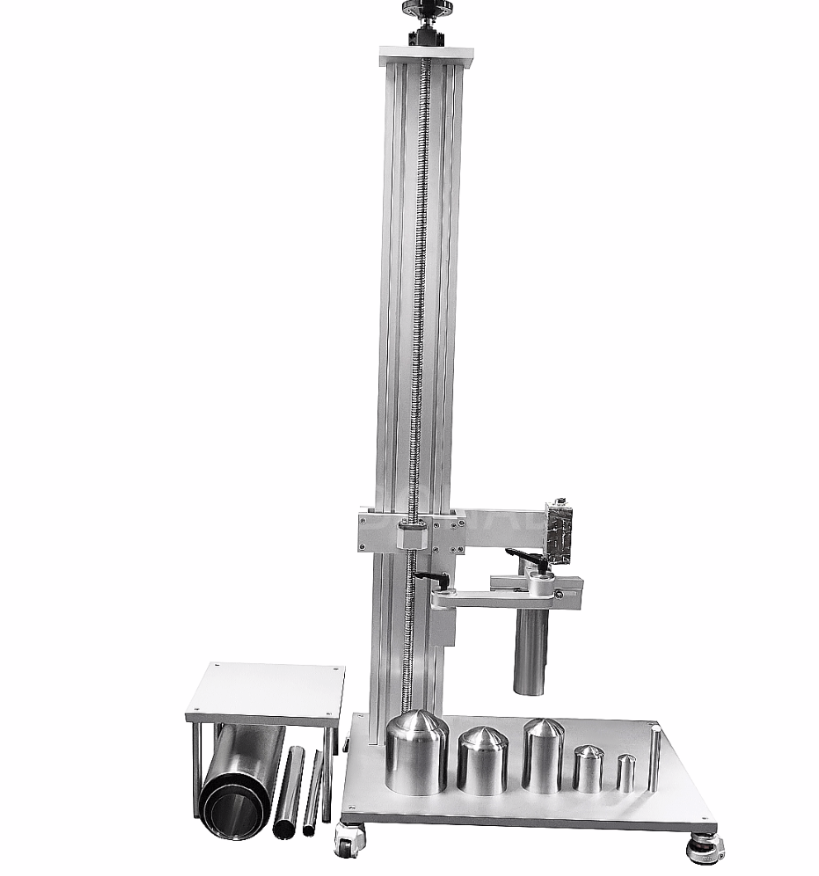

IK Vertical Hammer Impact Tester
IK Vertical hammer impact tester is designed according to IEC-60068-2-75 Test Ehc
<Environmental testing – Part 2: Tests – Test Eh: Hammer tests>. It consists of striking
element which falls freely from rest through a vertical height, on to the specimen surface
held in a horizontal plane and guide tube. The equipment is released by electromagnet to
ensure instantaneous release and vertical drop.
Hammer Test
Standard EN/IEC 60068 consists of three methods for testing the impact resistance of a test object against impacts with different severity levels. It serves to demonstrate the mechanical strength of a product and is intended primarily for the testing of electrical equipment. The test consists of a standard test procedure with a defined number of impacts on the test object with a defined impact energy. Standard IEC 60068-2-75 covers impact energies from 0.14 J to 50 J.
Technical parameters:
Item | Technical parameter |
Striking element | Impact component Options ：1J/2J/5J/10J/20J/50J(optional) 1J Equivalent mass of impacting element：0.25±2g 2J Equivalent mass of impacting element：0.5±5g 5J Equivalent mass of impacting element：1.7±5g 10J Equivalent mass of impacting element：5.0±5g 20J Equivalent mass of impacting element：5.0±5g 50J Equivalent mass of impacting element：10.0±5g |
Constrain the catheter | According to the impact of matching components： 1J/2J/5J/10J/20J/50J (optional) |
Universal fixture | Maximum clamping：15KG. |
Impact release | Manual, magnetic type. Sided four-bit card slot to facilitate the replacement of impact components. |
Drop height | Manual adjustable range: 200-1300mm; Effective accuracy: ± 1mm. |
Height adjustment | Hand wheel, ball-type screw, with the Japanese import rod. |
EN 60068-2-75 DIMENSIONS TABLE OF IMPACT ELEMENTS:
IK CODE | IK00 | IK01 | IK02 | IK03 | IK04 | IK05 | IK06 | IK07 | IK08 | IK09 | IK10 | IK11 |
Impact energy (Joule) | * | 0.14 | 0.20 | 0.35 | 0.50 | 0.70 | 1.00 | 2.00 | 5.00 | 10.00 | 20.00 | 50.00 |
Drop Height (mm) | * | 56 | 80 | 140 | 200 | 280 | 400 | 400 | 300 | 200 | 400 | 500 |
Mass (kg) | * | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.50 | 1.70 | 5.00 | 5.00 | 10.00 |
Material | * | P1 | P1 | P1 | P1 | P1 | P1 | S2 | S2 | S2 | S2 | S2 |
R (mm) | * | 10 | 10 | 10 | 10 | 10 | 10 | 25 | 25 | 50 | 50 | 50 |
D (mm) | * | 18.5 | 18.5 | 18.5 | 18.5 | 18.5 | 18.5 | 35 | 60 | 80 | 100 | 125 |
f (mm) | * | 6.2 | 6.2 | 6.2 | 6.2 | 6.2 | 6.2 | 7 | 10 | 20 | 20 | 25 |
r (mm) | * | – | – | – | – | – | – | – | 6 | – | 10 | 17 |
l (mm) | * | Must be adapted to the appropriate mass | ||||||||||
Swing hammer | * | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Spring hammer | * | Yes | Yes | Yes | Yes | Yes | Yes | No | No | No | No | No |
Free fall hammer | * | No | No | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
