Parallel UV Weathering Test Chamber

1.2Model

UV340-P (Imported lamp from Q-lab,   USA)

2.Product overview and scope of   application

2.1 Overview

The   damage caused by sunlight and moisture to materials causes tens of thousands   of dollars in economic losses every year. The UV weathering test chamber can   reproduce the damage caused by sunlight and dew. The test chamber exposes the   material to be tested in a controlled interactive cycle of sunlight and   moisture while increasing the temperature. The test chamber uses ultraviolet   fluorescent lamps to simulate sunlight and simulates the effects of moisture   through condensation.

2.2 Scope of application

It is   suitable for testing various materials and inspecting the aging degree of   related products and materials under changes in climatic conditions such as   sunlight, temperature, humidity, condensation, etc.

3. Sample restrictions

This test equipment is prohibited from:

Testing and storing samples of flammable,   explosive, and volatile substances

Testing and storing samples of corrosive   substances

Testing or storing biological samples

Testing   and storing samples of strong electromagnetic radiation sources

4. Basic parameters of the product

4.1Working room

4.2External dimension

4.3Test environment   conditions

4.4Temperature range

4.5Temperature   Fluctuation

4.6Temperature   uniformity

4.7Humidity range

4.8 Condensation   temperature

4.9Parallel center distance of lamp tubes

4.10Distance between the test sample and the lamp surface

4.11Light Source

4.12UV Lamp Wavelength Range

4.13UV irradiance

4.14Sample rack dimensions

4.15Effective irradiation surface

4.16Spray

4.17Power supply voltage

500×1140×600   （D×W×H）mm

750×1400×1750   （D×W×H）mm

Ambient   temperature is 5～35℃, relative humidity ≤85%RH,RT+10℃～70℃

±1.0℃

±2.0℃

Condensation   period≥85%RH; Irradiation period ≤75%RH

40℃～60℃

70mm

50~400mm adjustable (supporting samples up to 350mm)

 UVA-340+  Optional:   UVB-313

290～400nm

0.4~0.9W/m²adjustable (UVA)

0.35~0.8W/m²adjustable (UVB)

500×1100mm

550*950mm

4 atomizing spray nozzles on the top

220V　60Hz

5.Compliance with standards

Implementation standards: GB/T16422.3 GB/T16585 GB/T14522   Artificial climate accelerated test methods for plastics, coatings and rubber   materials for mechanical industrial products, ASTM G154, ASTM D5208 and ASTM   D4329, ISO4892-3 ISO61345 GB/T30984.1 Photovoltaic PV test, test method for   plastic exposure to indoor light sources (part of the parameter indicators of   the above standards)

ISO 4892-1 “Plastics Methods of exposure to laboratory light   sources Part 1: General guidance”

ISO 4892-3 “Plastics Methods of exposure to laboratory light   sources Part 3: Fluorescent UV lamps”

ASTMG53 “Standard Practice for Operating Light-and   Water-Exposure Apparatus (Fluorescent UV-Condensation Type) for Exposure of   Nonmetallic Materials.”

GB/T 16585-1996 “Rubber,vulcanized–Test method of resistance to   artificial weathering (Fluorescent UV lamp)”

GB/T 16422.3-1997 “Plastics-Methods of exposure to labory light   sources- Part3:Fluorescent UV lamps”

6.Structural characteristics

6.1Chamber structure

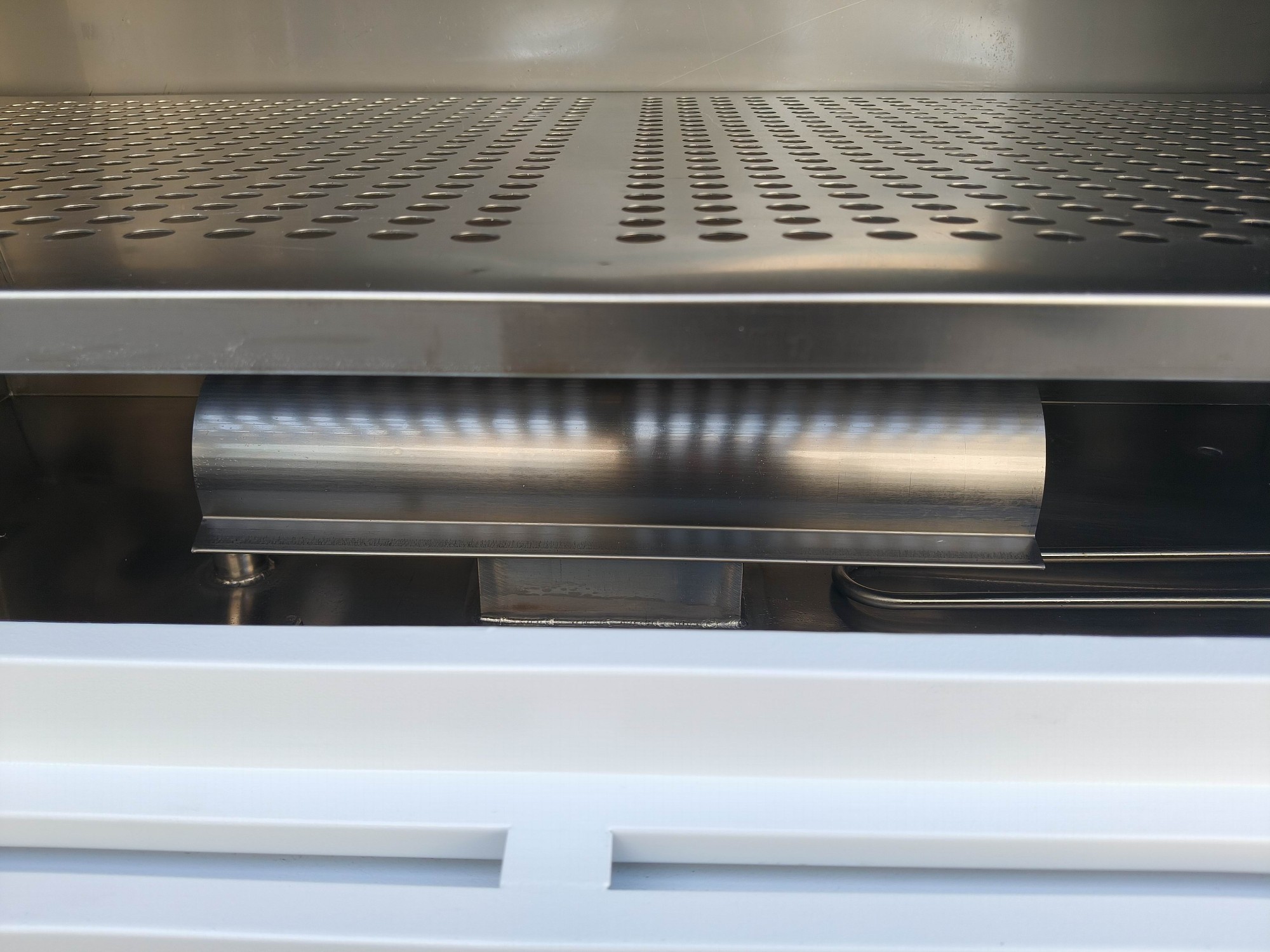

The   chamber adopts an integrated structure, which is divided into three parts:   upper, middle and lower. The upper part is the control panel, the middle is   the test work area, and the lower part is the electrical and mechanical room.   The inner tank is made of 1.2mm SUS304 stainless steel plate, and the outer   shell is made of 1.2mm thick A3 steel plate sprayed with plastic. The bottom   of the equipment is equipped with a humidification system and a water storage   tank, and is equipped with a water heating and air heating system. The   circulation system consists of a fan and an air duct to increase the air flow   and greatly improve the temperature uniformity of the test chamber

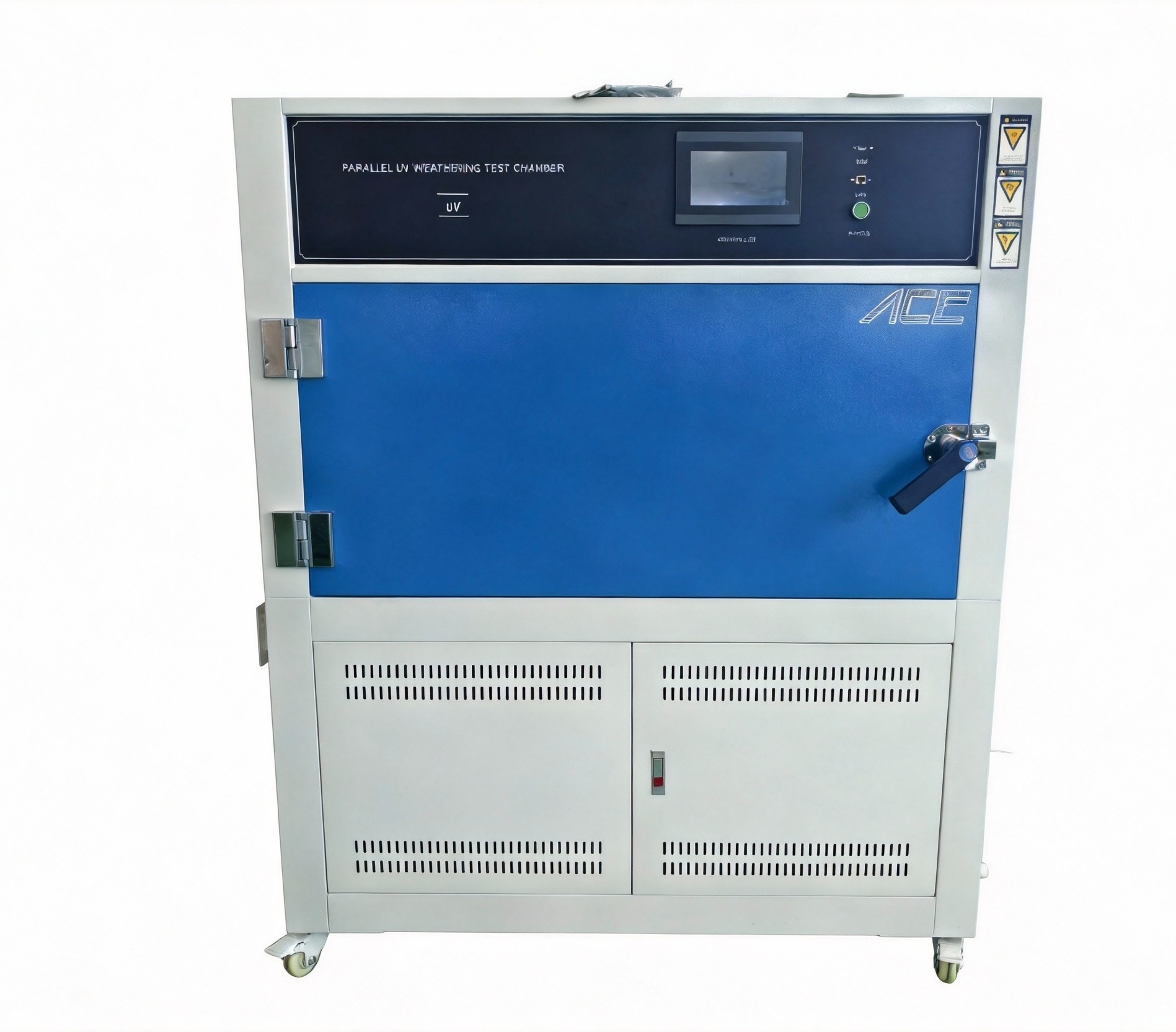

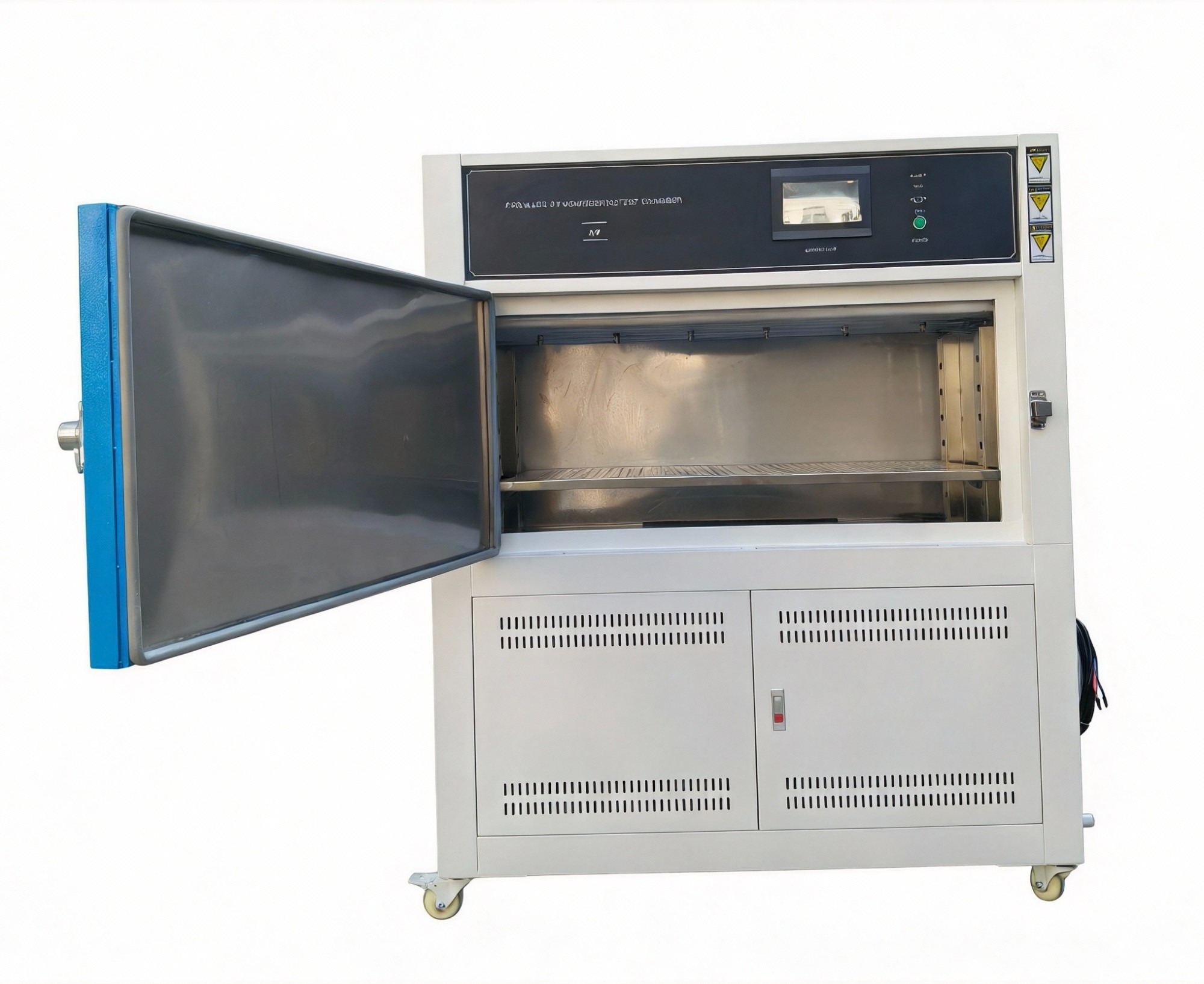

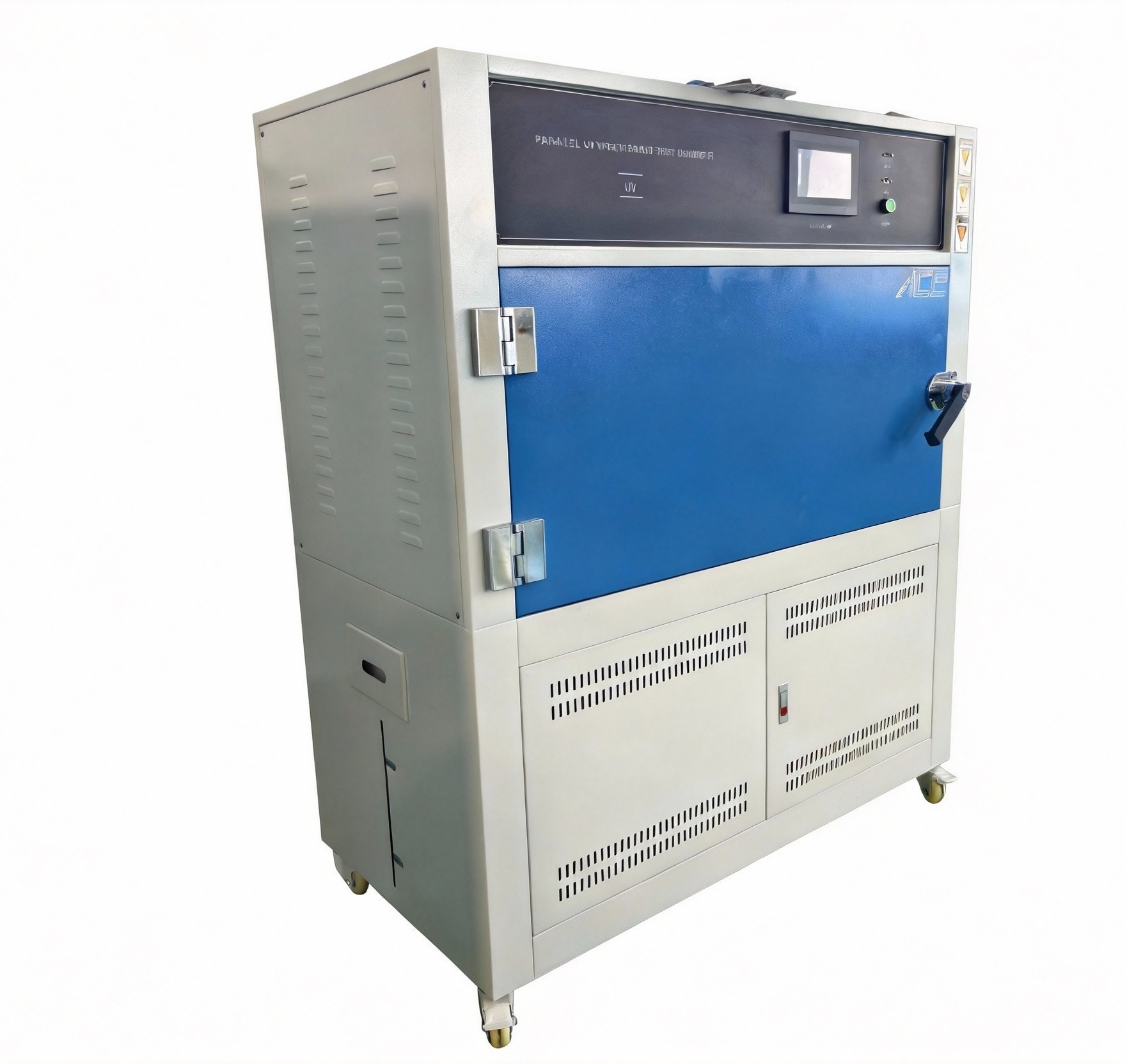

6.2Reference pictures

6.3Lamp

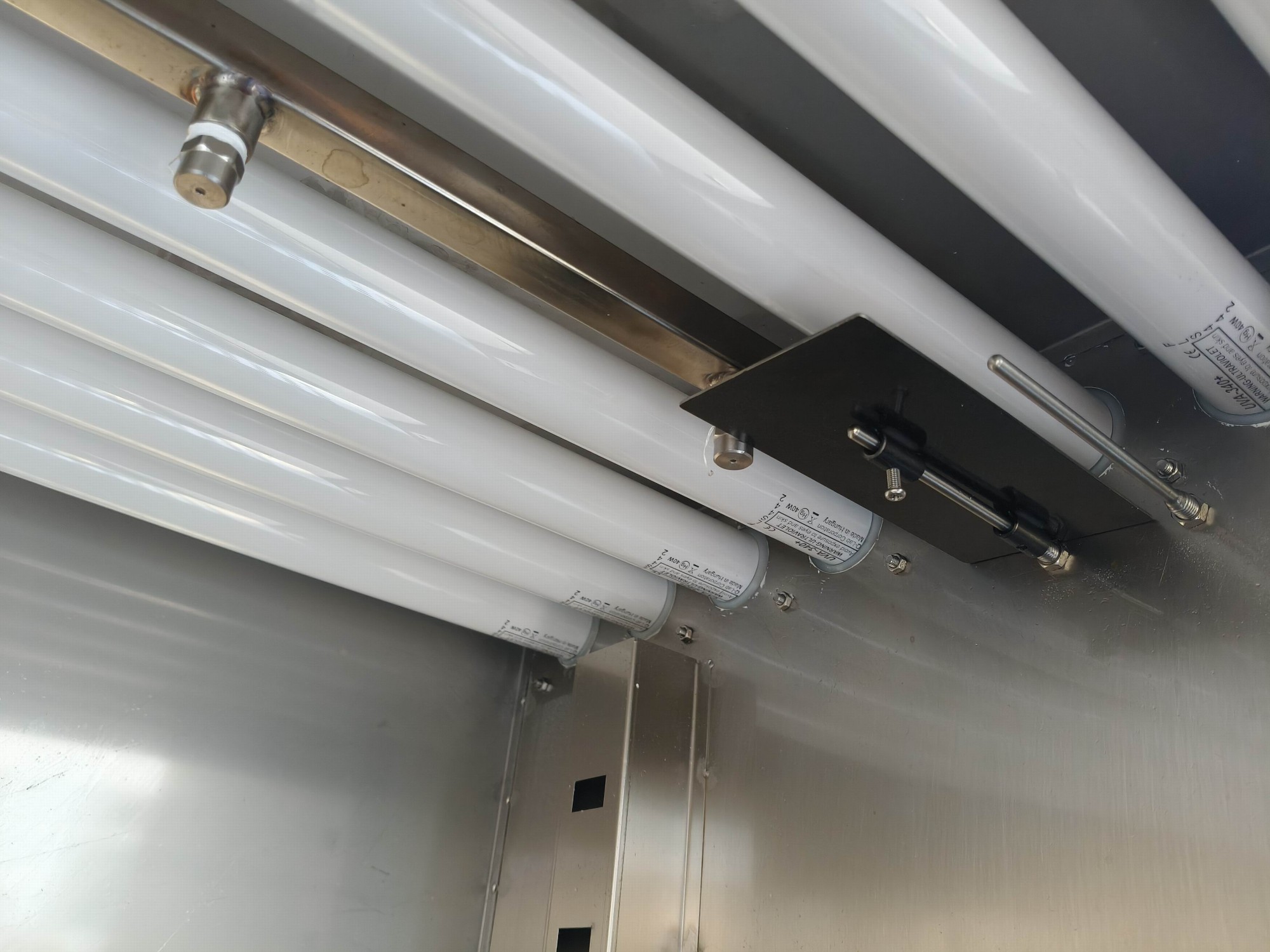

Original   imported U.S. QUV UV lamps (Q-lab), 8 evenly spaced in a row on   the top of the chamber, 40W/lamp

Lamp   life: 1600h

6.4Water sources and

consumption

Purified or distilled water 8   liters/day

6.5Test water reuse

The overflow and reuse of test humidification and spraying water   is returned to the lower water tank of the test chamber by installing a water   purification filter, and can be reused to save water.(   A water purification filter needs to be installed   at the water inlet.)

6.6   Controller

Adopt   Taiwan 7-inch touch screen "TH7140" touch screen controller, the   setting method is touch input, with set value, measurement value, ultraviolet   irradiance display, PID self-tuning

Operation   mode: fixed value operation

Temperature display,   setting accuracy: ±0.1℃

Temperature display   resolution: ±0.1℃

6.7Input   method

PT100 platinum resistance,   blackboard thermometer, UV279~420nm ultraviolet irradiance sensor

6.8Execution   components

French   "Schneider" AC contactors, thermal relays, leakage circuit   breakers; Taiwan "WST" solid-state relays; French   "Schneider" intermediate relays, etc.

7.Sample rack setting

Standard   flat surface

8.Safety protection device

8.1Test   chamber

Adjustable   over-temperature protection

8.2Others

Main   power phase sequence and phase loss protection

Leakage   protection

Load   short circuit protection

9.Conditions of use The user shall ensure the following   conditions

9.1Site

The   ground is flat, well ventilated, and free of flammable, explosive, or   corrosive gases and dust. There should be adequate maintenance space and   drainage drains around the equipment.

9.2Environmental   conditions

Temperature:   5℃～35℃

Relative   humidity: ≤ 85%RH

9.3Power   Supply

AC220V    3.0KW

10.Delivery time

10.1Delivery period

30days

10.2Quotation validity period

60 days
