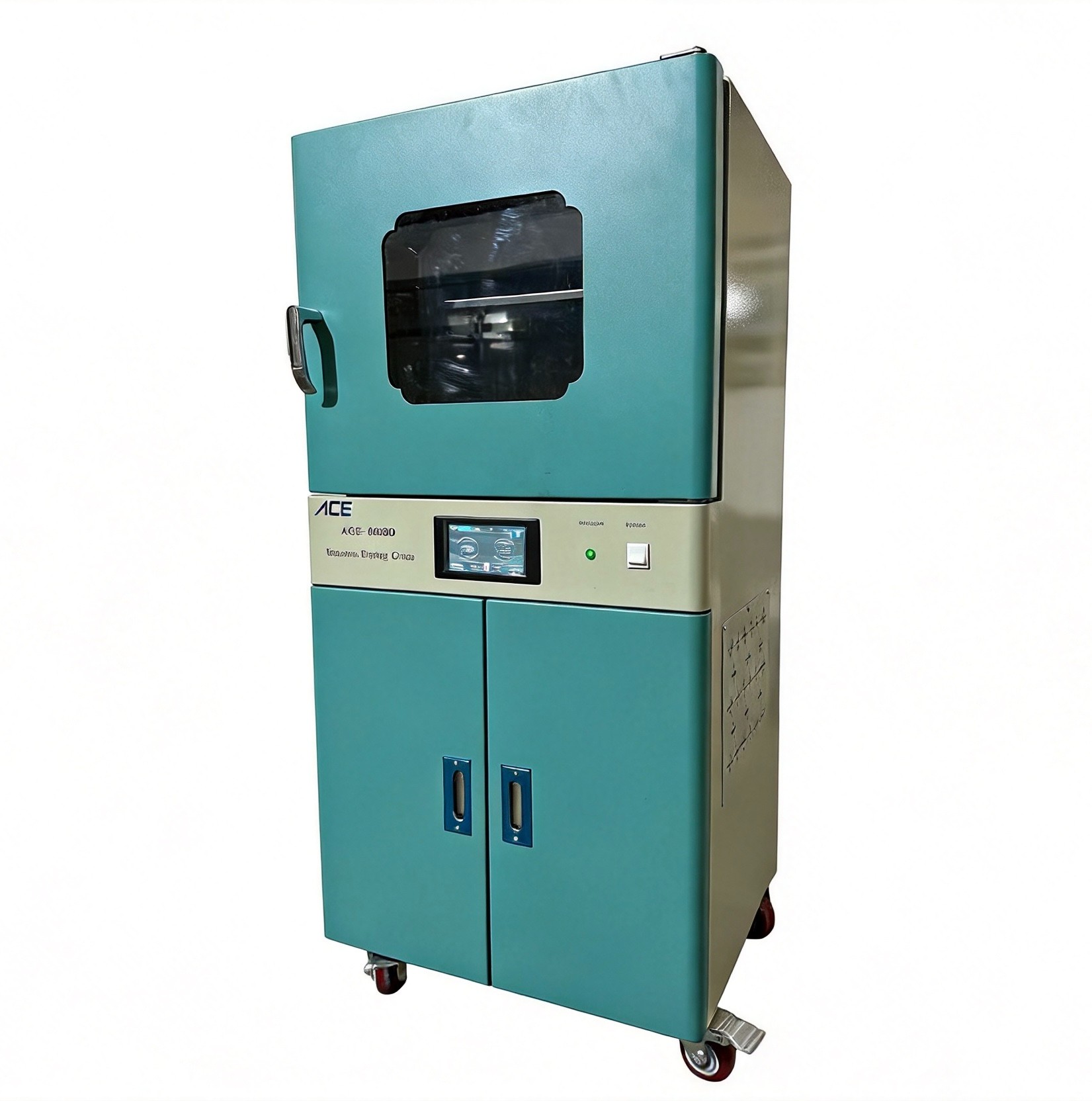

Vacuum Drying Oven

Vacuum drying oven

The automatic vacuum drying oven series is the result of the company's successful experiments on conventional vacuum ovens over the years. Through intensive research, it breaks through traditional technology and creatively solves the "bottleneck" in the heat conduction process to find the perfect conduction method.

Product Features

The rectangular workroom maximizes the effective volume, and the microcomputer temperature controller

controls the temperature accurately and reliably;

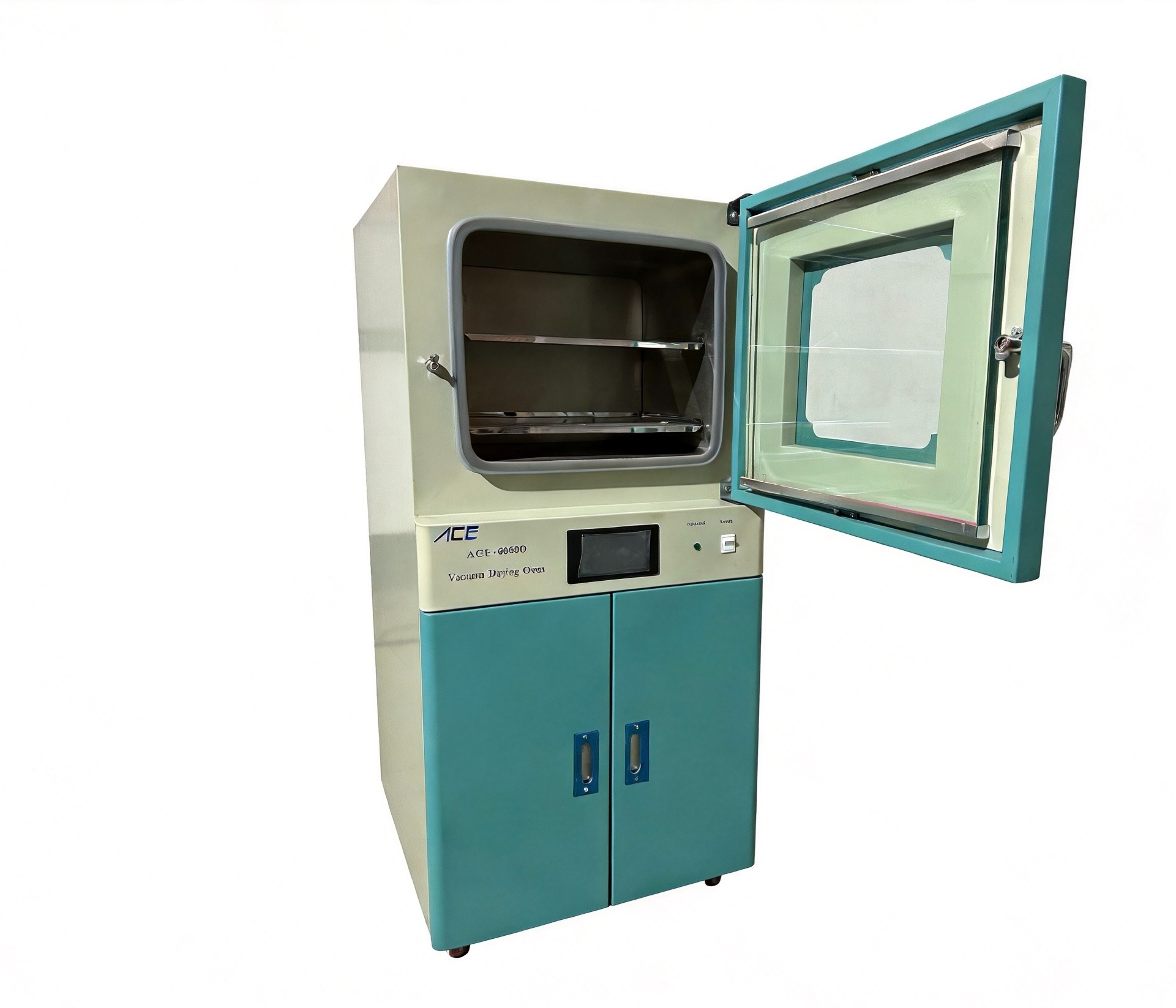

The tempered, bulletproof double-layer glass door allows for clear observation of objects in the workroom, and can be filled with inert gas;

The tightness of the door closure can be adjusted, and the integrally formed silicone rubber door seal ensures high vacuum in the box;

The workroom is made of stainless steel plates (or brushed plates) to ensure that the product is durable;

Storage, heating, testing and drying are all carried out in an oxygen-free or inert gas-filled environment, so there is no oxidation;

The shortest heating time is reduced by more than 50% compared with traditional vacuum drying ovens;

It has leakage protection and grounding protection sensor fault alarm.

Application Overview

The vacuum drying oven is specially designed for drying heat-sensitive, easily decomposable and easily oxidized substances. Inert bodies can be filled into the interior by adding an air filling port, especially some items with complex components can also be dried quickly.

New functions

Features of the new controller for vacuum drying oven;

Advantages of fuzzy control over traditional PID control;

Simple operation, no need to set PID and other related parameters;

Adaptive temperature control, no need for long self-tuning process;

Automatically adjust control parameters according to ambient temperature and load size, with high temperature control accuracy;

No integral term accumulation after the box door is opened, and small temperature overshoot after closing the door;

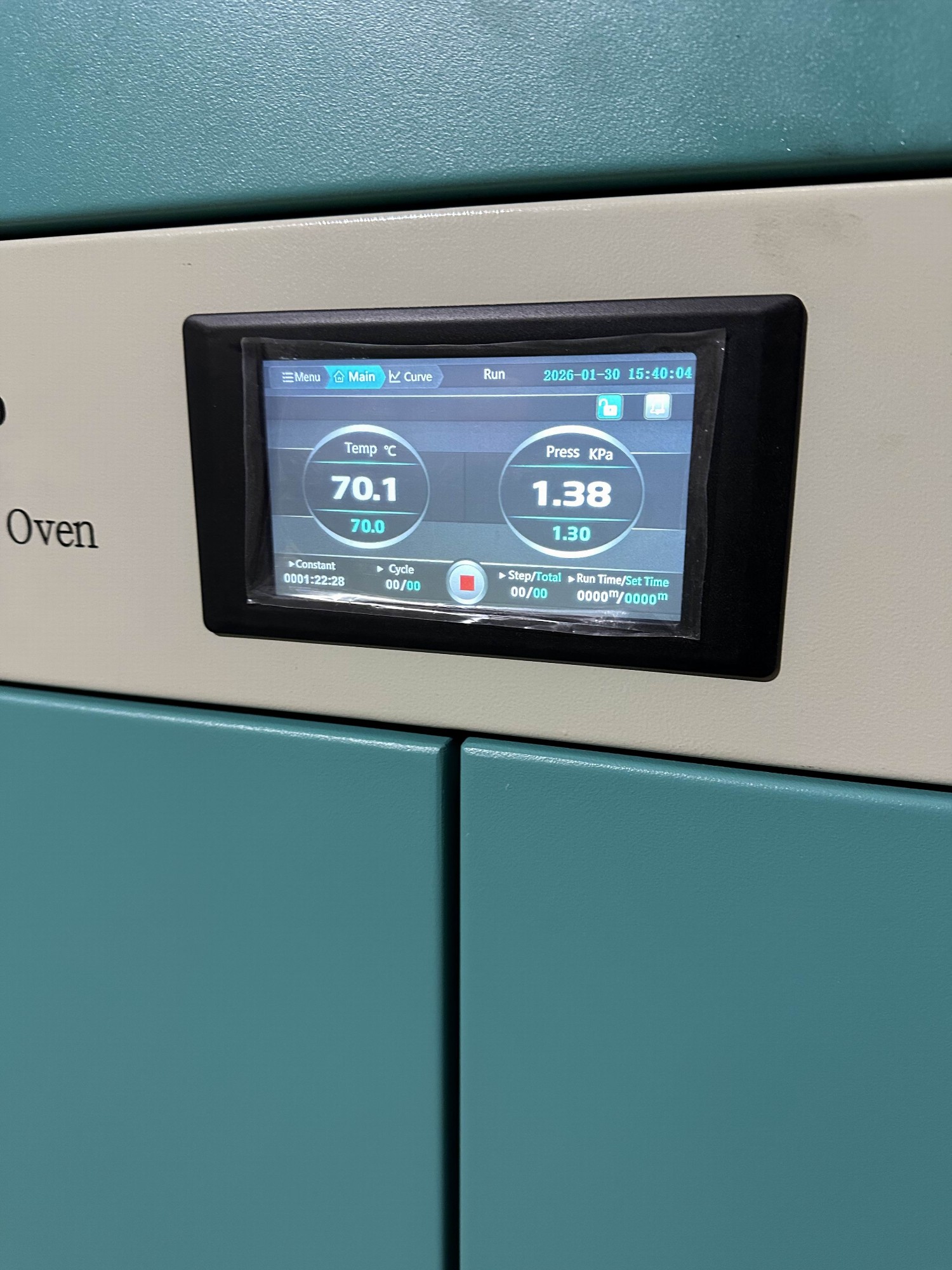

Digital display vacuum meter. The vacuum degree can be adjusted from 0 to 99.99 KPa through the panel, with an adjustable accuracy of 10 Pa. The panel displays the vacuum degree range of 0 to 99.99 KPa, and the fluctuation of the vacuum degree is ±10%. The over-temperature alarm cuts off the heating power supply;

Timing range: 0 to 999 min;

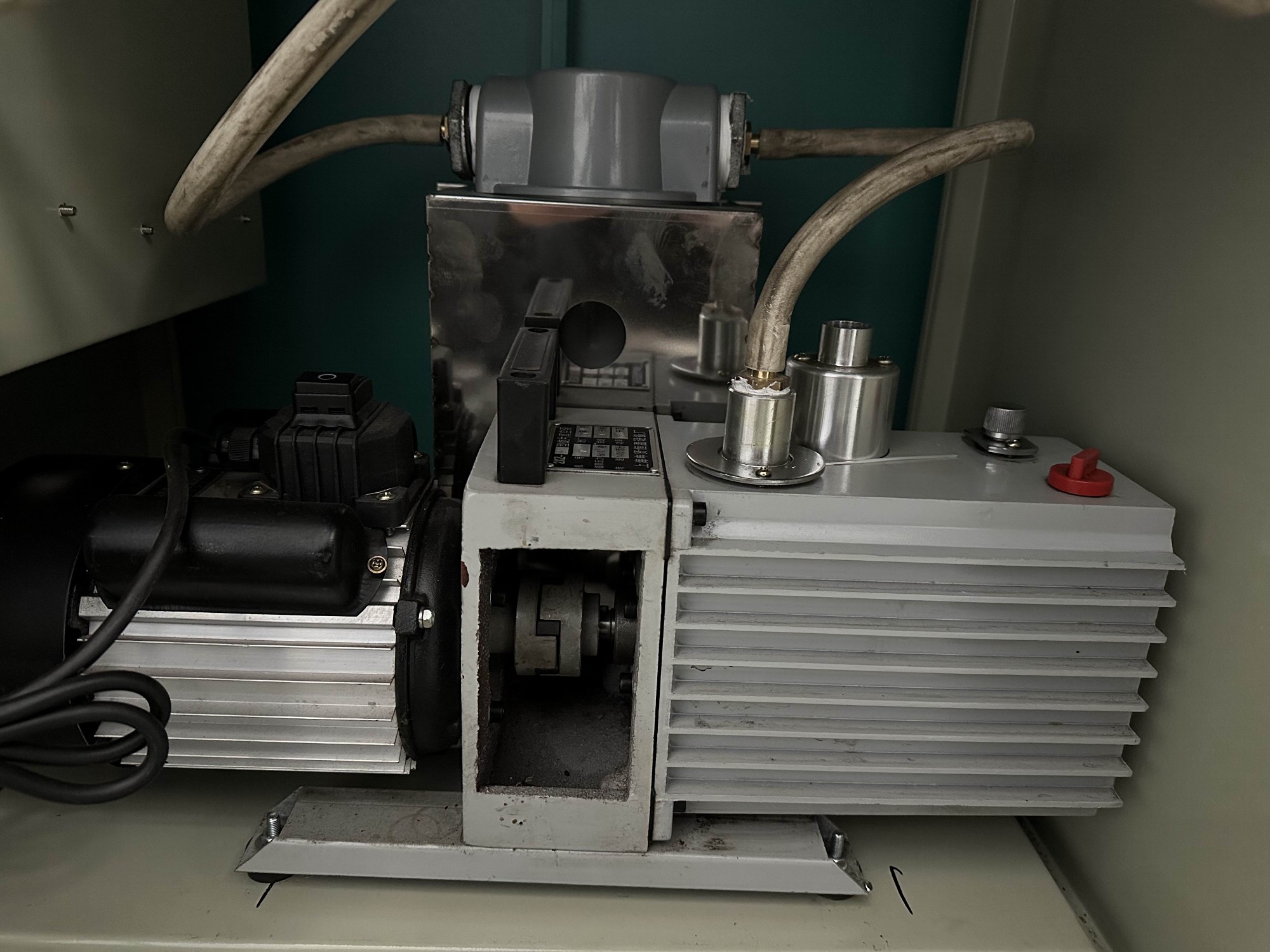

The pressure value and the vacuuming time can be set in stages. After setting, the automatic vacuuming is started. After reaching the set vacuum degree, the vacuum pump is automatically turned off and the pressure is maintained. After the set pressure holding time ends, the instrument automatically releases the pressure; (the insulation time is adjustable, the vacuuming time is adjustable, the time to maintain the vacuum degree is adjustable, delayed heating, delayed vacuuming.

Operation mode (fixed value/program) function • Operation time function • Temperature/pressure slope function

Power-off memory function Appointment (start/stop) function Curve display (record sampling interval/record file) function Multi-segment PID setting function • U disk storage/download function Unlock password function Network connection function Printer (format/interval) function (optional)
