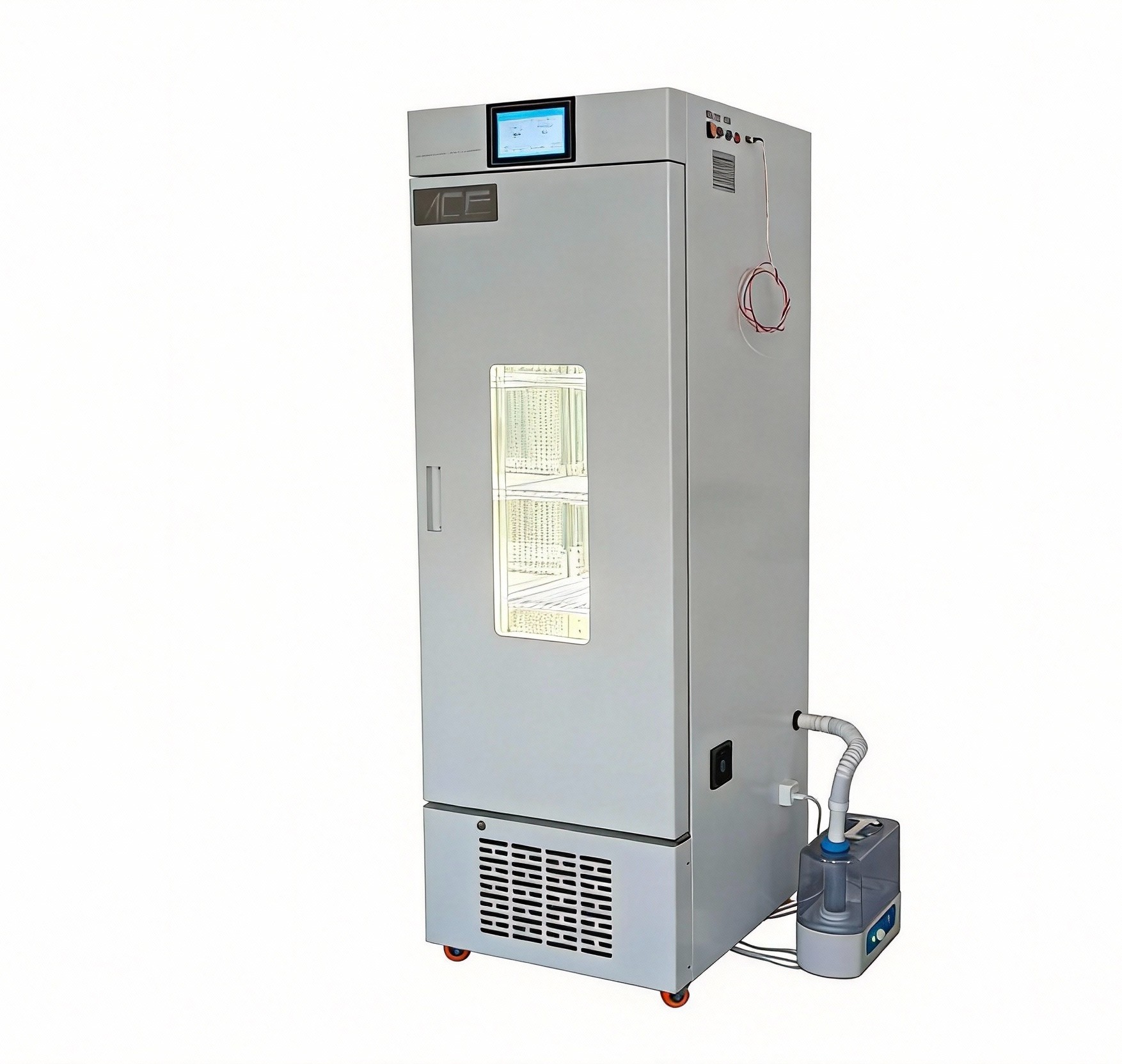

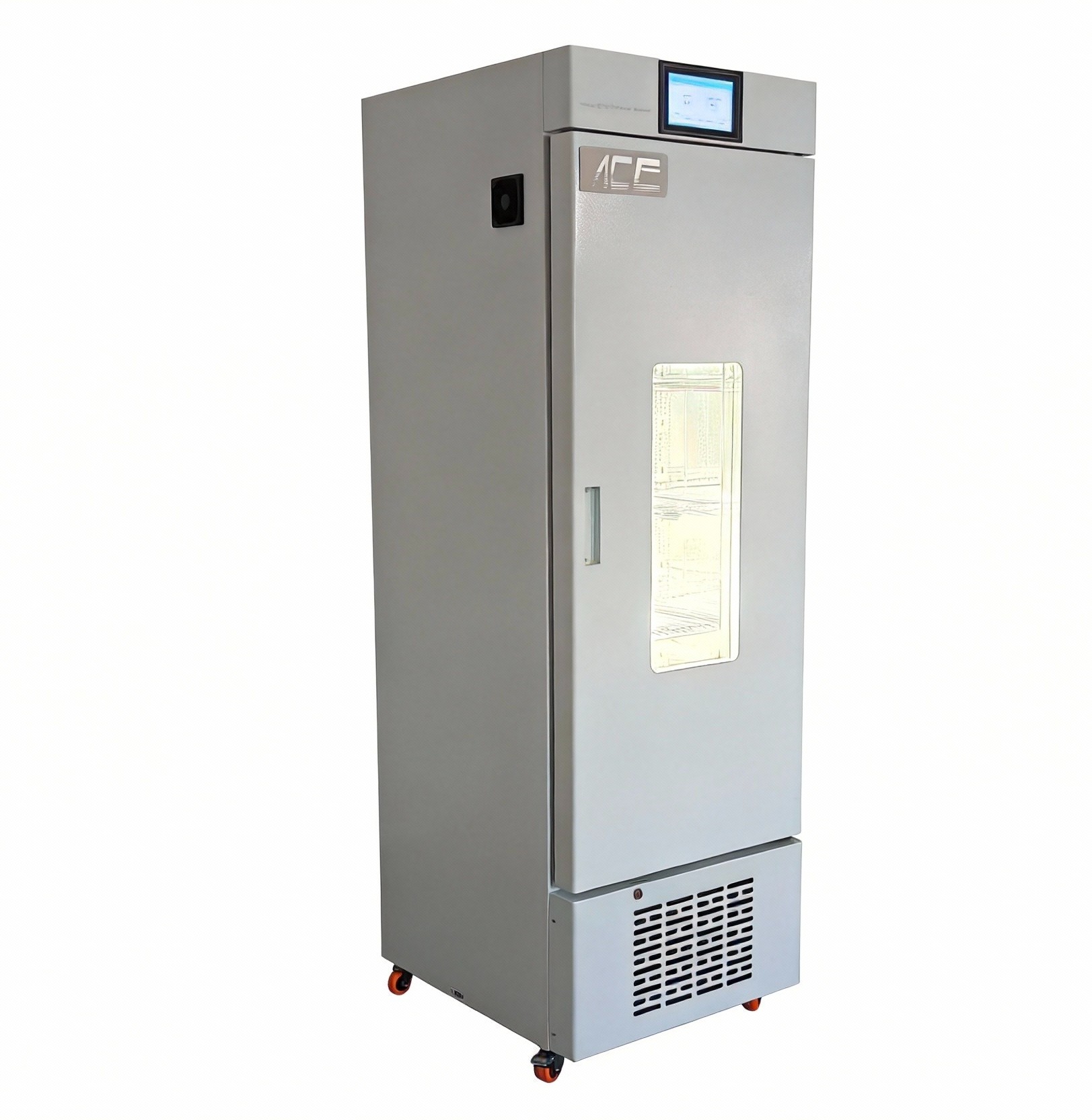

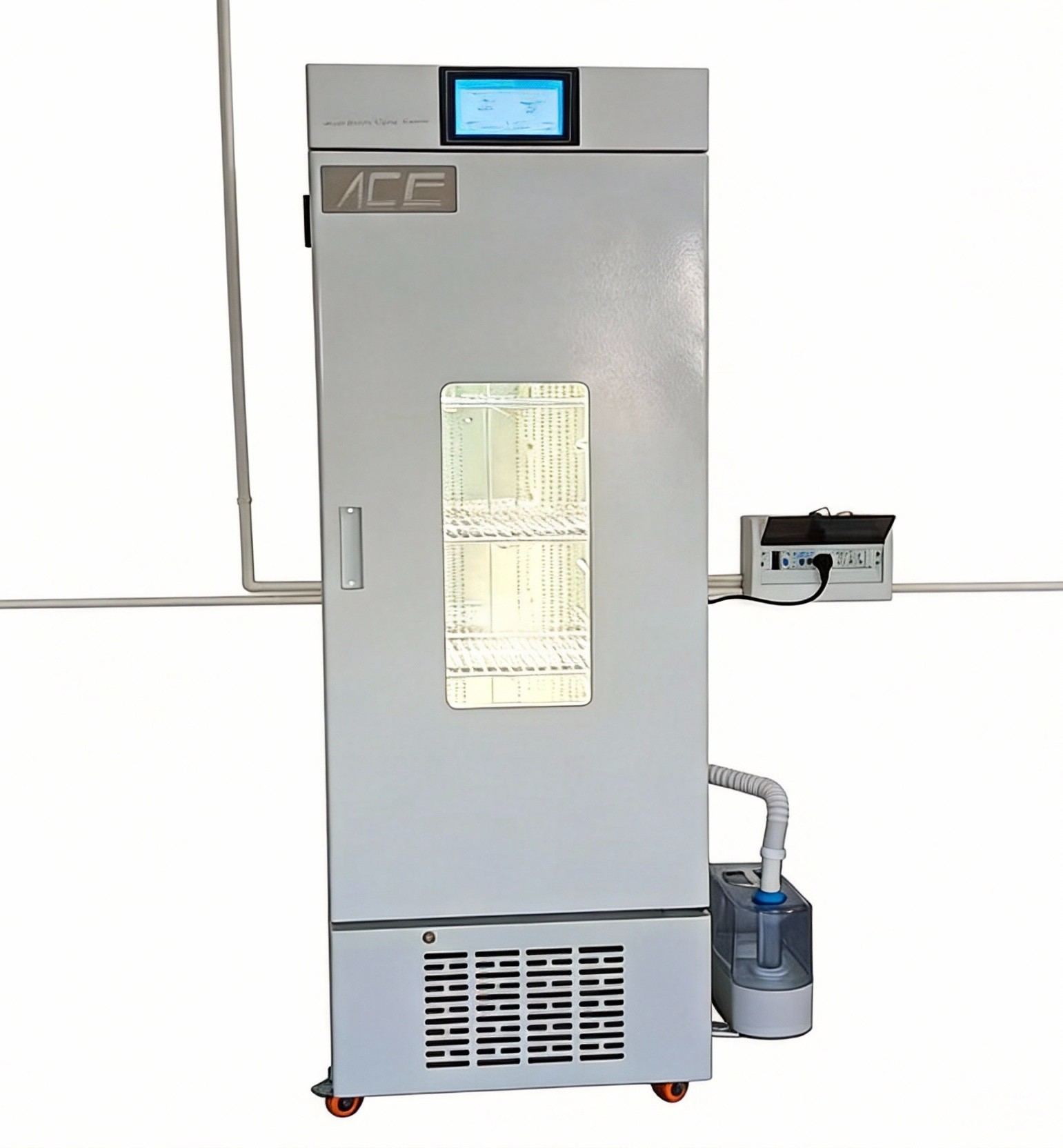

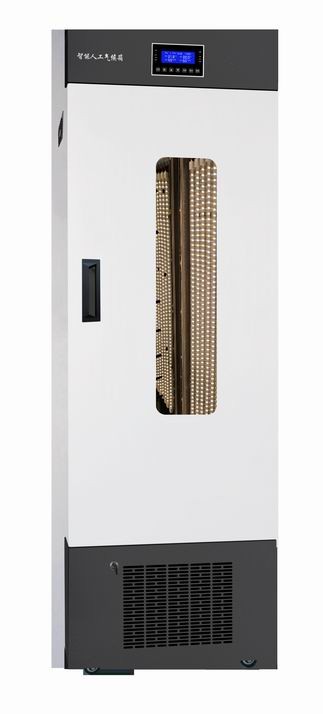

Intelligent Artificial Climate Chamber

Product usage: The intelligent artificial climate chamber is suitable for plant growth and tissue culture, seed germination, seedling cultivation, microbial cultivation experiments; insect and small animal breeding; BOD determination for water quality monitoring; aging and service life tests of medicinal materials, wood, and building materials, as well as other lighting, constant temperature and humidity special test equipment.

Product features:

● The microcomputer program controls temperature, humidity, and illumination, which can simulate the temperature and humidity changes during the day and night, and can also choose a sufficient and stable light source for the growth environment.

● 30 programs can be set, and the time range for each section is 1-99 hours (optional). Different segment parameters can be set to meet the different parameters of plant growth.

● International brand compressors ensure long-term continuous operation of the test equipment, environmentally friendly refrigerant (R134a), high efficiency, low energy consumption, and promote energy saving.

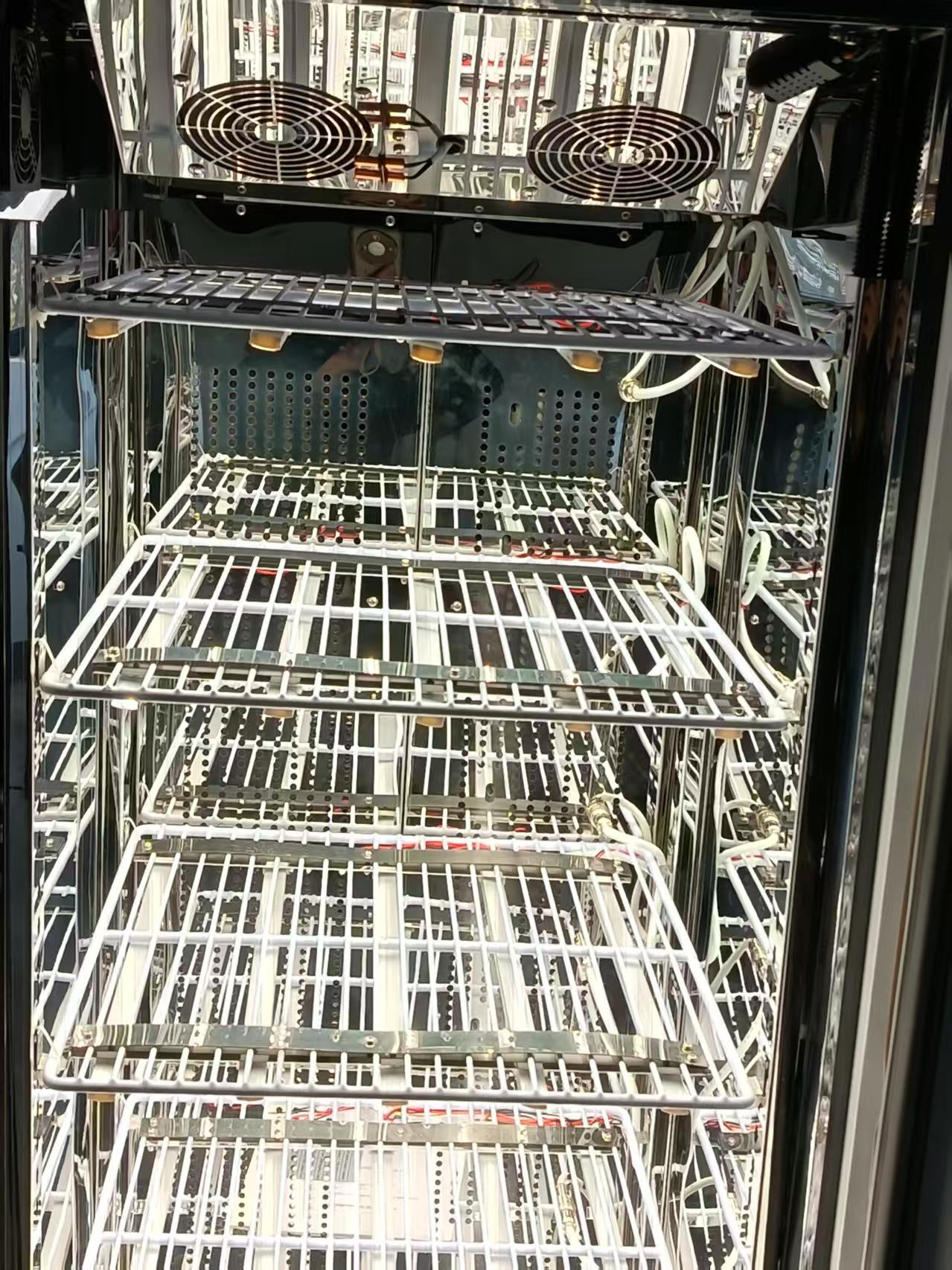

● Mirror stainless steel liner, semi-circular transition at four corners, the partition bracket can be freely loaded and unloaded, which is convenient for cleaning in the box.

● Equipped with an independent temperature limit alarm system, it will automatically interrupt when the limit temperature is exceeded to ensure safe operation of the experiment without accidents. (Optional)

● RS485 interface can be used to connect to a computer, and the experimental process or experimental data can be synchronously monitored by the computer. (Optional)

● Optional: CO2 inlet (to promote plant growth) and CO2 controller (imported infrared CO2 sensor)

Technical parameters:

1. Instrument name: Intelligent artificial climate chamber

2. Instrument model: ACE-PRX-350D

3. Volume: 330L

4. Temperature control range: 0-65℃, temperature control accuracy ±0.1℃, fluctuation ±0.5℃,unevenness: ±1.0℃

5. Humidity control range: 40-95%RH, humidity control accuracy ±1%RH, humidity control fluctuation ±5%RH, unevenness: ±5%RH.

6. Rated illumination: 30000LX Relative illumination control range: (five levels adjustable)

7. Dimensions (mm): External dimensions: 600*670*1920 Inner tank dimensions: 500*520*1280

8. Heating time: 0℃ to 40℃≤60 minutes

9. Cooling time: 40℃ to 10℃≤100 minutes

10. Working time: continuous cycle

11. Working environment: temperature 4-30℃, humidity below 85%RH, no corrosive gas

12. Compressor delay protection time: 3 minutes

13. Working mode: continuous operation (compressor intermittent operation)

14. Noise: ≤70db

15. Power requirements: 220V (range 187V-246V), 50Hz

16. Air cooling technology, fluorine-free refrigeration.

17. Inner tank stainless steel, inner tank stainless steel, exterior aluminum alloy streamline design.

18. The polyurethane foam light-proof door design plays a role of opacity, which promotes the complete absorption of light by plants.

19. The light source is warm white light, with a color temperature of 4000K.

20. Imported chips, with a service life of 50,000 hours.

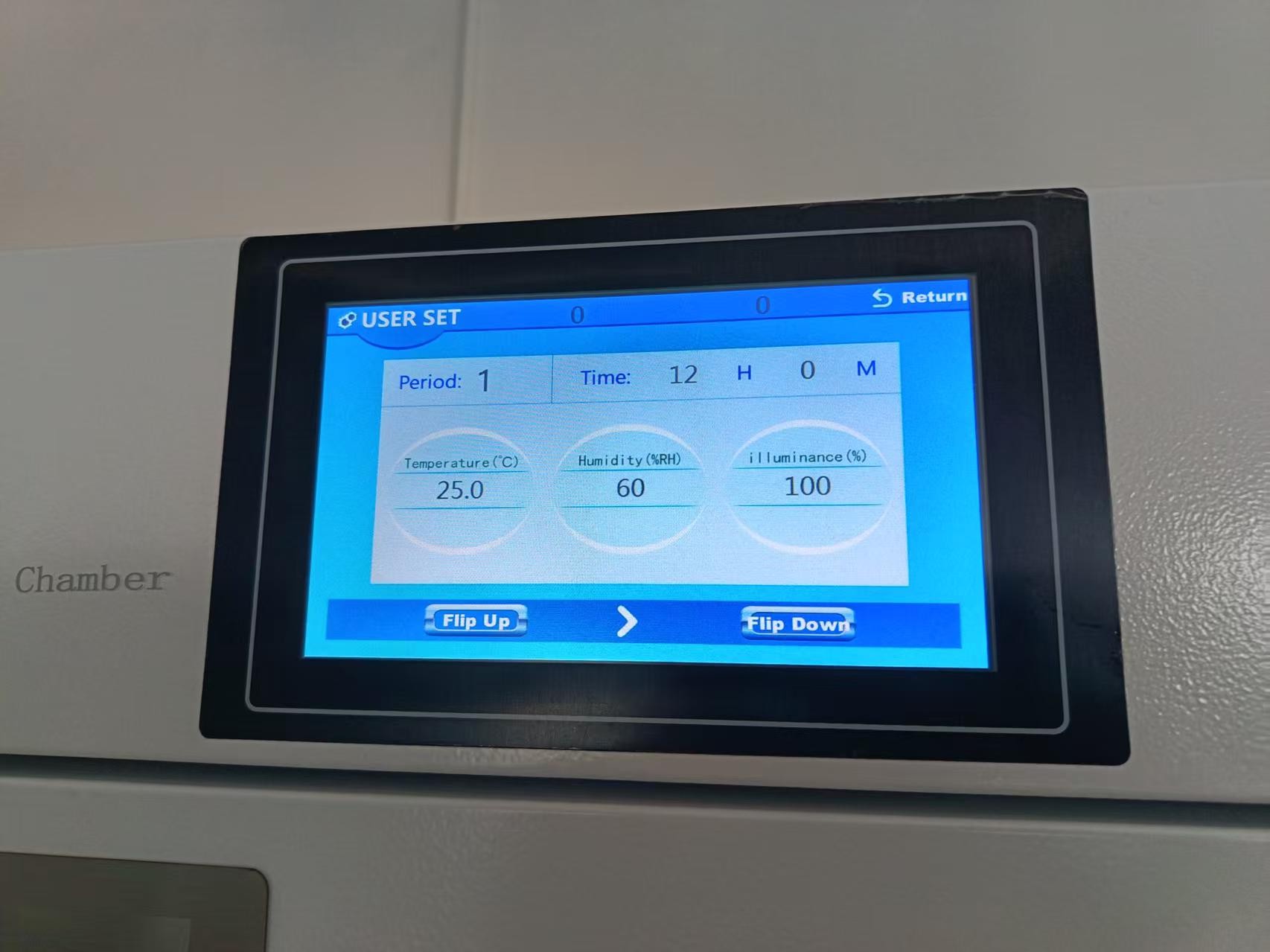

21. LED display screen, which can display temperature, humidity, light, and time.

22. A temperature and humidity test hole is installed at the back.

23. Temperature and humidity control method: The back air duct in the box is used for circulating cooling, with bottom in and top out, and the circulation is uniform, and the air volume is 2m/s.

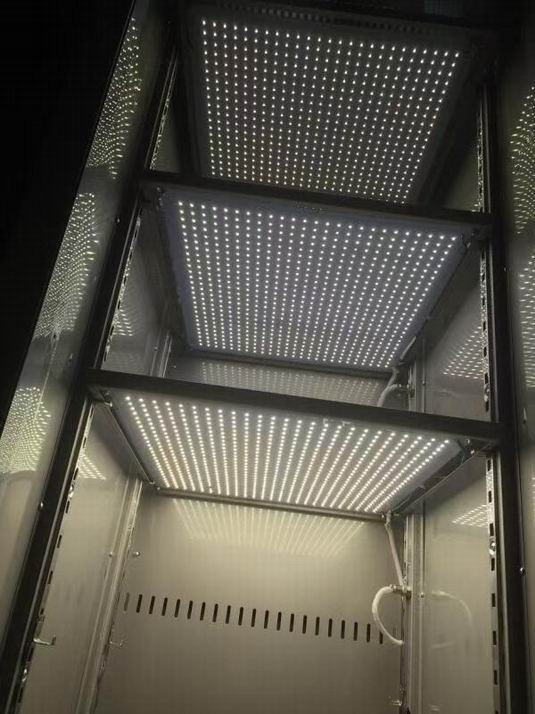

24. Number of light sources: PPR plant growth lamps.

25.Temperature sensor and overheating protection.

26.Low and high temperature, door opening, humidity and power failure alarms (with audible alarm).

27.Ability to program temperature, humidity, and light intensity.

28.Mounted wheels for moving the chamber
